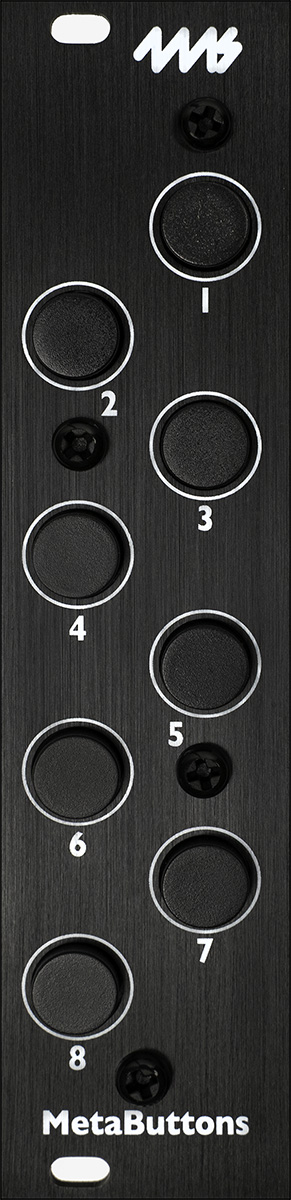

4ms metamodule button expander price : $125.00

metabuttons is an expander for metamodule that adds eight buttons to your interface. you can connect up to four metabuttons together, making it easy to expand your setup as much or as little as you need.

within metamodule, each metabutton can be mapped to virtual buttons, switches of any size, or even knobs. you can also customize each button's behavior in metamodule to suit your workflow-choose between toggle or momentary button modes.

a metabutton can control up to 8 virtual parameters, enabling you to manage multiple functions with a single press.

metabuttons gives you powerful, flexible control that will help push your patch to the next level.

features:
basic features:
8 hardware buttons that can connect to and control metamodule.
expanders can be daisy chained together with a limit of four metabuttons, or with other metamodule expanders.

specifications:
module size:
6hp eurorack format module
24mm mounting depth

power consumption:
+12v rail: 10ma
+5v rail: not used
-12v rail: not used

included with the button expander:
one 12-pin female to female ribbon cable
metamodule adapter pcb chiclet
two m3 knurled screws
one 2-pin shunt jumper

download the quickstart guide here
