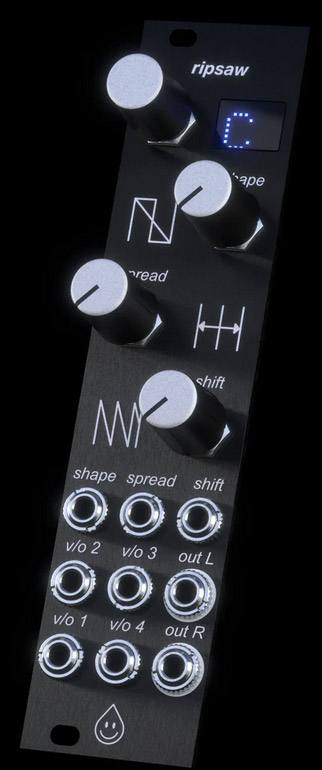

acid rain technology ripsaw price : $319.00

stereo super oscillator re-imagined

four voice paraphonic
ripsaw contains 4 voices that can each be individually controlled with 1 volt per octave pitch cv

seven oscillator spread
each of ripsaw's 4 voices contain 7 waveforms that can be detuned from eachother in pitch to create a lush swarm oscillator sound

wave morph
ripsaw's oscillator waveforms morph smoothly from classic sawtooth to square for a hollow, haunting tone when spread detune is introduced

super sync
ripsaw's shift parameter offsets the pitch of a hard sync oscillator for every one of the 28 waveforms to open up a whole new timbral dimension

hex platform
ripsaw is only the first firmware to be released on our new 6hp eurorack hardware platform called hex. other firmware options that generate and process sound will be available to download and try out free of charge

features:
4 voices of 7 morphing saw-square waveforms each with individual volt per octave pitch control
7 waves per voice spread across the stereo outputs
shift control introduces unique hard sync frequency shift to every waveform
onboard fine tune control and optional semitone quantization
reverse polarity power protection

specifications:
6hp
25mm deep
42ma on +12v, 5ma on -12v, 0ma on +5v
